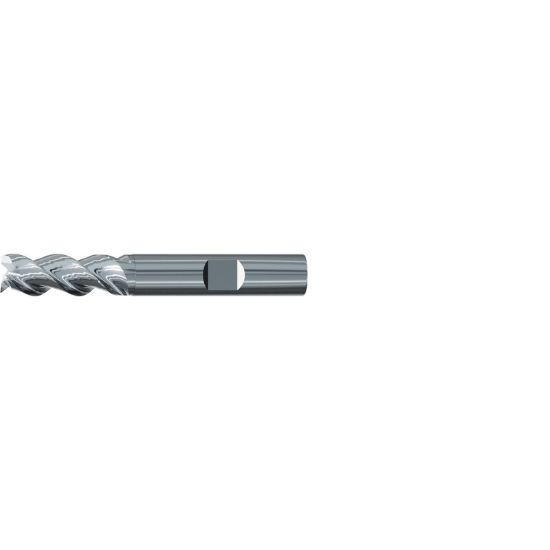

EMUGE 2545.006 DIA 6MM SH 0.2362 LOC 2.2441 OAL 0.5118 End Mill Standard Flute Variable Helix Carbide Uncoated Single End 45.0° Chamfer Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2545.006
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Performance Rating High Performance
Application Face Milling, Slot Milling, Side Milling
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.2362 6.00MM
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cutter Style Carbide Finisher
Flutes/Inserts 3
Length Of Cut 2.2441 57.00MM
Single/Double End Single End
Overall Len 0.5118 13.00MM
End Of Tool Shape Corner Chamfer
Inch/Metric Metric
Cutter Dia 0.2362 6.00MM
Helix Angle Variable
Dimension Description 0.236 x 0.236 x 2.244 x 0.512
Neck Length 0.5118 13.00MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
