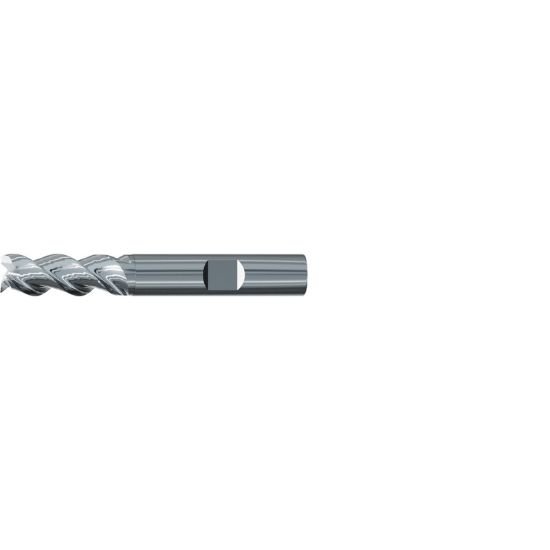

Picture of Emuge 2545.006 Dia 6mm SH 0.2362 LOC 2.2441 OAL0.5118 End Mill Standard Flute Variable Helix Carbide Uncoated Single End 45.0° Chamfer Alu-Cut

Emuge 2545.006 Dia 6mm SH 0.2362 LOC 2.2441 OAL0.5118 End Mill Standard Flute Variable Helix Carbide Uncoated Single End 45.0° Chamfer Alu-Cut

Part Number: EMU2545.006 0.236 x 0.236 x 2.244 x 0.512

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1234940
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
EMUGE Variable Helix End Mill Carbide Uncoated 45.0° Chamfer Chamfer Standard Flute Flutes 3 Single End Alu-Cut Carbide
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.2362 6.00MM
Overall Length 0.5118 13.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 3
Tool Dia 0.2362 6.00MM
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 2.2441 57.00MM
End Of Tool Shape Corner Chamfer
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle Variable
Center Cutting Center Cutting
Neck Length 0.5118 13.00MM
