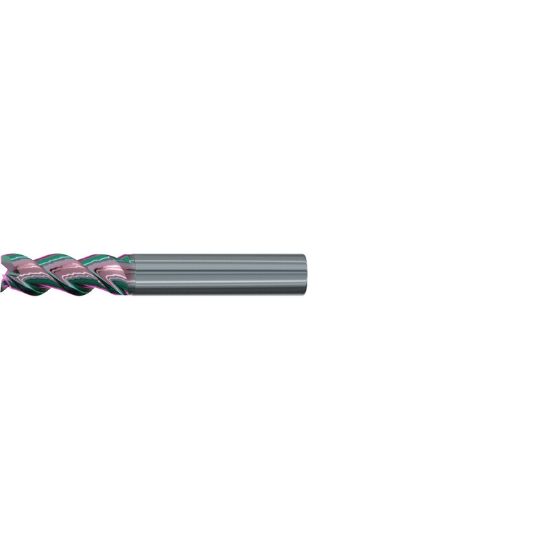

EMUGE 2544K.012 DIA 12MM SH 0.4724 LOC 3.2677 OAL 1.0236 End Mill Standard Flute Variable Helix Carbide GLT Single End 45.0° Chamfer Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2544K.012
Delivery date: 3-5 days
$152.43

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Face Milling, Slot Milling, Side Milling
Shipping State Massachusetts
Performance Rating High Performance
Coating GLT
Package Size 1
Dimensional Specifications
Dimension Description 0.472 x 0.472 x 3.268 x 1.024
Length Type Standard
Cutter Dia 0.4724 12.00MM
Flutes/Inserts 3
Neck Length 1.0236 26.00MM
Single/Double End Single End
Helix Angle Variable
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 1.0236 26.00MM
Length Of Cut 3.2677 83.00MM
Machine Side Connection Size 0.4724 12.00MM
End Of Tool Shape Corner Chamfer
Inch/Metric Metric
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
