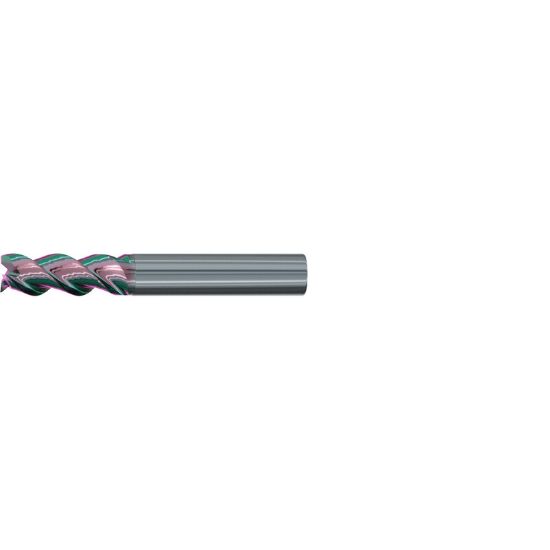

EMUGE 2544K.010 DIA 10MM SH 0.3937 LOC 2.8346 OAL 0.8661 End Mill Standard Flute Variable Helix Carbide GLT Single End 45.0° Chamfer Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU2544K.010
Delivery date: 3-5 days
$107.51

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Slot Milling, Side Milling, Face Milling
Made In USA No
Package Size 1
Shipping State Massachusetts
Coating GLT
Dimensional Specifications
Dimension Description 0.394 x 0.394 x 2.835 x 0.866
Flutes/Inserts 3
Helix Angle Variable
Shank/Pilot Dia 0.3937 10.00MM
Length Of Cut 2.8346 72.00MM
Length Type Standard
Neck Length 0.8661 22.00MM
Machine Side Connection Size 0.3937 10.00MM
End Of Tool Shape Corner Chamfer
Inch/Metric Metric
Overall Len 0.8661 22.00MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
