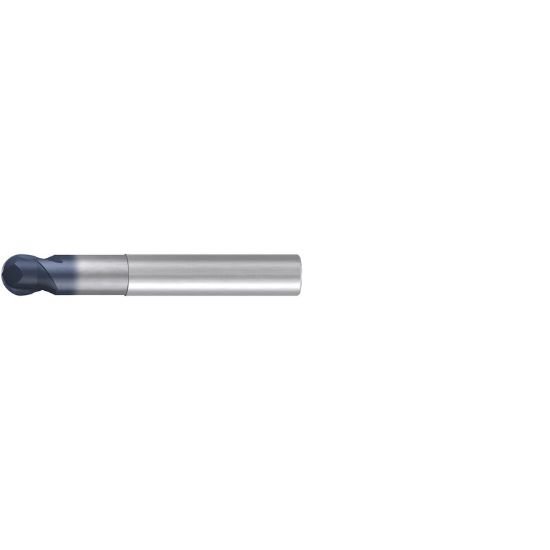

Picture of Emuge 1966A.0375 Dia 3/8 SH 0.3750 LOC 0.3125 OAL 2.7500 End Mill Standard Helix Carbide TiAlN Single End Ball NoseBall Top-Cut

Emuge 1966A.0375 Dia 3/8 SH 0.3750 LOC 0.3125 OAL 2.7500 End Mill Standard Helix Carbide TiAlN Single End Ball NoseBall Top-Cut

Part Number: EMU1966A.0375 0.375 x 0.375 x 0.313 x 2.750
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$162.53
SKU: 1236259

Description

EMUGE End Mill Carbide TiAlN Ball Nose 2 Flute Single End ToP-Cut
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.7500 69.85MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.3125 7.94MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
