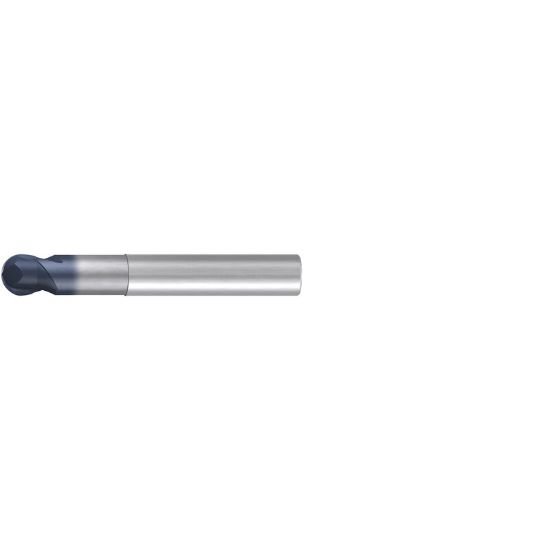

Picture of Emuge 1966A.0250 Dia 1/4 SH 0.2500 LOC 0.2500 OAL2.00 End Mill Standard Flute Standard Helix Carbide TiAlN Single End Ball NoseBall Top-Cut

Emuge 1966A.0250 Dia 1/4 SH 0.2500 LOC 0.2500 OAL2.00 End Mill Standard Flute Standard Helix Carbide TiAlN Single End Ball NoseBall Top-Cut

Part Number: EMU1966A.0250 0.250 x 0.250 x 0.250 x 2.000
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1236257
Vendor: Sussex Tool and Supply
$72.55

Description

EMUGE Standard Helix End Mill Carbide TiAlN Ball Nose Ball Standard Flute Flutes 2 Single End TOP-Cut Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.0000 50.80MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Of Cut 0.2500 6.35MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
