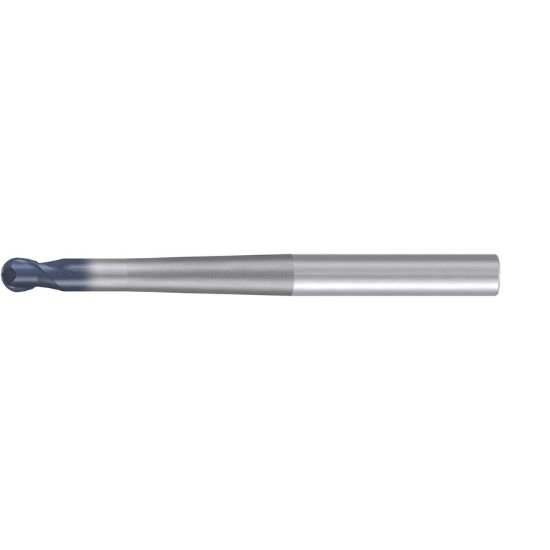

Picture of Emuge 1960A.002 Dia 2mm SH 0.2362 LOC 0.1181 OAL 3.1496 End Mill Standard Helix Carbide TiAlN Single End Ball NoseBall Top-Cut

Emuge 1960A.002 Dia 2mm SH 0.2362 LOC 0.1181 OAL 3.1496 End Mill Standard Helix Carbide TiAlN Single End Ball NoseBall Top-Cut

Part Number: EMU1960A.002 0.079 x 0.236 x 0.118 x 3.150
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
$120.04
SKU: 1236264

Description

EMUGE End Mill Carbide TiAlN Ball Nose 2 Flute Single End ToP-Cut
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Standard / Taper Neck
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 3.1496 80.00MM
Shank/Pilot Dia 0.2362 6.00MM
Flutes/Inserts 2
Tool Dia 0.0787 2.00MM
Length Of Cut 0.1181 3.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Titanium, <42HRC Steel, High Temp, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
