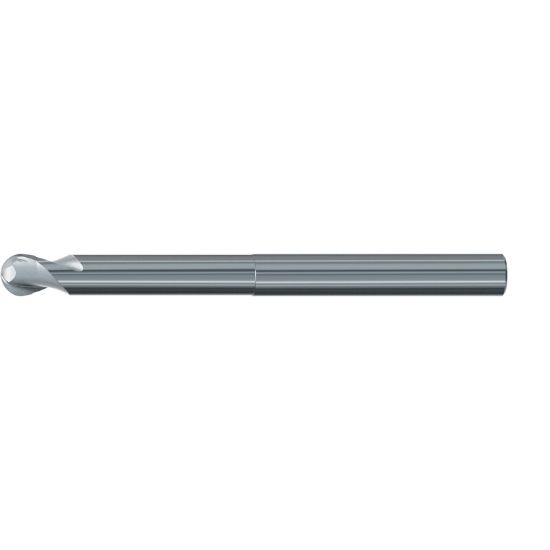

EMUGE 1943.008 DIA 8MM SH 0.3150 LOC 0.2756 OAL 4.7244 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU1943.008
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Massachusetts
Package Size 1
Made In USA No
Application Copy Milling, Side Milling, Ball Slot Milling, Profile Milling, Ball Milling
Performance Rating High Performance
Dimensional Specifications
End Of Tool Shape Ball Nose
Cutter Dia 0.3150 8.00MM
Flutes/Inserts 2
Inch/Metric Metric
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3150 8.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Size 0.3150 8.00MM
Dimension Description 0.315 x 0.315 x 0.276 x 4.724
Length Type Extra Long
Helix Angle 30°
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Overall Len 4.7244 120.00MM
Length Of Cut 0.2756 7.00MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
