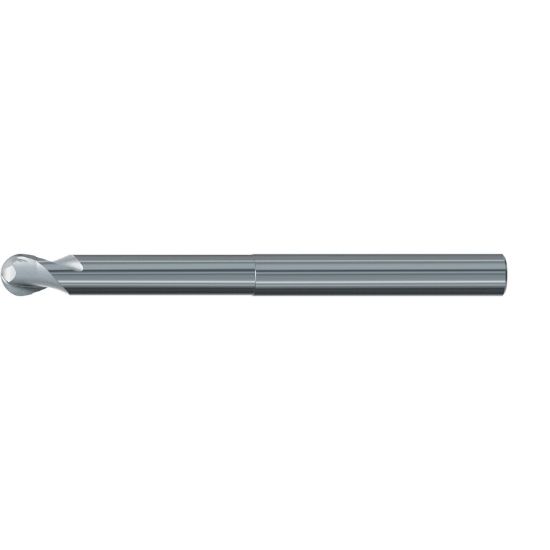

EMUGE 1943.004 DIA 4MM SH 0.2362 LOC 0.1575 OAL 3.1496 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU1943.004
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling, Side Milling
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Dimension Description 0.157 x 0.236 x 0.158 x 3.150
Machine Side Connection Size 0.2362 6.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cutter Dia 0.1574 4.00MM
Inch/Metric Metric
Single/Double End Single End
Flutes/Inserts 2
Length Of Cut 0.1575 4.00MM
Cutter Style Carbide Ball Finisher
Overall Len 3.1496 80.00MM
Length Type Extra Long
Helix Angle 30°
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
