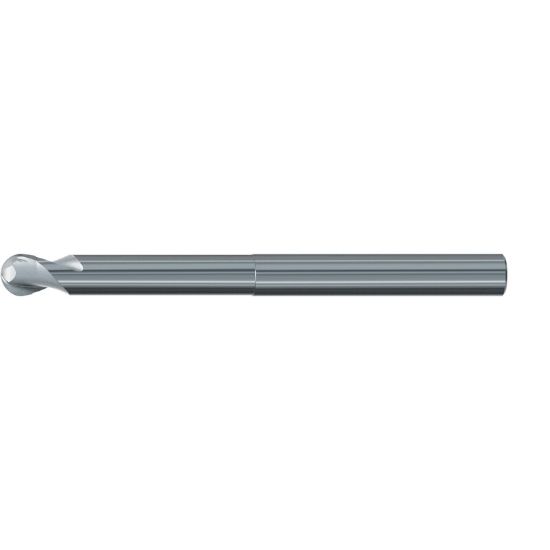

EMUGE 1943.003 DIA 3MM SH 0.2362 LOC 0.1378 OAL 3.1496 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball Nose Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU1943.003
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Made In USA No
Application Ball Milling, Side Milling, Copy Milling, Ball Slot Milling, Profile Milling
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Dimension Description 0.118 x 0.236 x 0.138 x 3.150
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1181 3.00MM
Machine Side Connection Size 0.2362 6.00MM
Length Of Cut 0.1378 3.50MM
Length Type Extra Long
Helix Angle 30°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 3.1496 80.00MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Flutes/Inserts 2
Inch/Metric Metric
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
