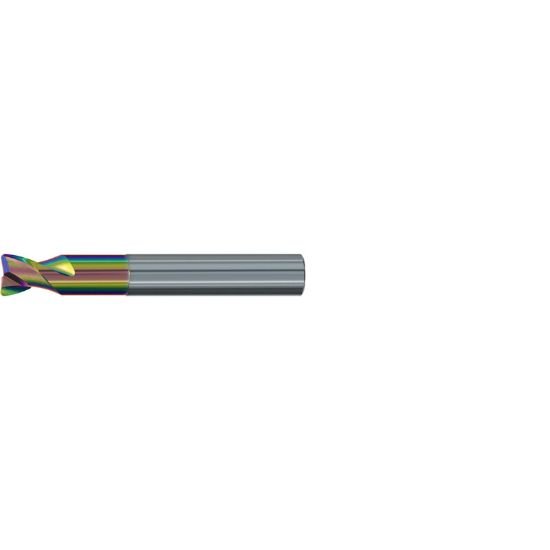

Picture of Emuge 1942R.009375 1942R.009375 Dia 3/32 SH 0.2500 LOC 0.1250 OAL2.2500 End Mill Standard Flute Standard Helix Carbide CrN Single End Corner Radius0.0078 0.20mm Alu-Cut

Emuge 1942R.009375 1942R.009375 Dia 3/32 SH 0.2500 LOC 0.1250 OAL2.2500 End Mill Standard Flute Standard Helix Carbide CrN Single End Corner Radius0.0078 0.20mm Alu-Cut

Part Number: EMU1942R.009375 0.094 x 0.250 x 0.125 x 2.250
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1235237
Vendor: Sussex Tool and Supply
$95.55

Description

EMUGE Standard Helix End Mill Carbide CrN Corner Radius 0.0078 0.20MM Standard Flute Flutes 2 Single End Alu-Cut Carbide CrN in forming applications, routinely provides 8x, or more, tool life, compared to uncoated tooling.  It also works better than thermal diffusion; eliminating the need for post-coat, heat treating.
Products specifications
Attribute name Attribute value
General Information
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type Stub
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 2.2500 57.15MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Tool Dia 0.0938 2.38MM - 3/32
Length Of Cut 0.1250 3.18MM
Geometry & Angles
Corner Radius 0.0078 0.20MM
Helix Angle 30
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating CrN
