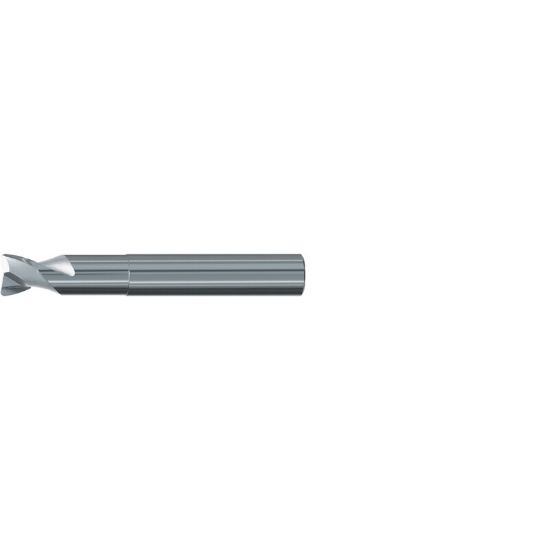

EMUGE 1942.075 1942.075 DIA 3/4 SH 0.7500 LOC 0.5625 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0781 1.98MM Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU1942.0750
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Made In USA No
Dimensional Specifications
Length Type Stub
Corner Radius 0.0781 1.98MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.5625 14.29MM
Inch/Metric Inch
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Dimension Description 0.750 x 0.750 x 0.563 x 4.000
Overall Len 4.0000 101.60MM
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
