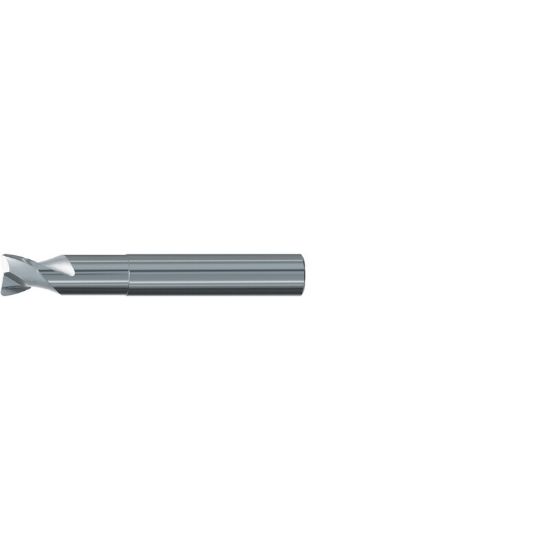

EMUGE 1942.05 1942.05 DIA 1/2 SH 0.50 LOC 0.3750 OAL 3.2500 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Corner Radius 0.0547 1.39MM Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU1942.0500
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Copy Milling, Side Milling, Profile Milling, Slot Milling
Shipping State Massachusetts
Package Size 1
Made In USA No
Performance Rating High Performance
Dimensional Specifications
Corner Radius 0.0547 1.39MM
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Flutes/Inserts 2
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.3750 9.53MM
Inch/Metric Inch
Cutter Style Carbide Bull Nose Finisher
Helix Angle 30°
Dimension Description 0.500 x 0.500 x 0.375 x 3.250
Overall Len 3.2500 82.55MM
End Of Tool Shape Corner Radius
Length Type Stub
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Mold Yes
Job Shop Yes
