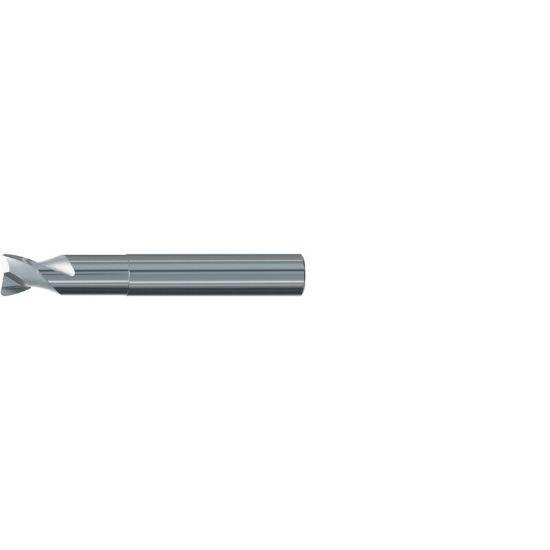

EMUGE 1942.025 1942.025 DIA 1/4 SH 0.2500 LOC 0.2500 OAL 2.2500 End Mill Torus Standard Helix Carbide Uncoated Single End Corner Radius 0.0234 0.59MM Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU1942.0250
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Made In USA No
Application Side Milling, Copy Milling, Profile Milling, Slot Milling, Face Milling
Shipping State Massachusetts
Package Size 1
Dimensional Specifications
Corner Radius 0.0234 0.59MM
Length Of Cut 0.2500 6.35MM
Flutes/Inserts 2
Cutter Style Carbide Torus
Helix Angle 30°
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Corner Radius
Length Type Stub
Dimension Description 0.250 x 0.250 x 0.250 x 2.250
Overall Len 2.2500 57.15MM
Single/Double End Single End
Cutter Dia 0.2500 6.35MM - 1/4 - E
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Aerospace Yes
Mold Yes
