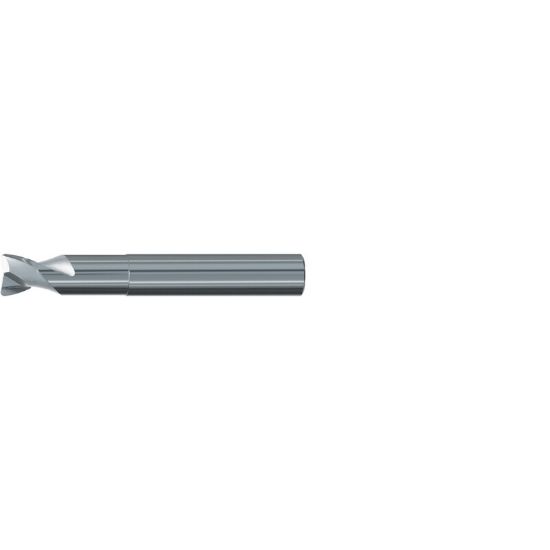

EMUGE 1942.0125 DIA 1/8 SH 0.2500 LOC 0.1562 OAL 2.2500 End Mill Torus Standard Helix Carbide Uncoated Single End Corner Radius 0.0156 0.40MM Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU1942.0125
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA No
Application Side Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Performance Rating High Performance
Shipping State Massachusetts
Dimensional Specifications
Dimension Description 0.125 x 0.250 x 0.156 x 2.250
Overall Len 2.2500 57.15MM
Flutes/Inserts 2
Corner Radius 0.0156 0.40MM
Cutter Style Carbide Torus
Cutter Dia 0.1250 3.18MM - 1/8
Length Of Cut 0.1563 3.97MM
Length Type Stub
Machine Side Connection Type Cylindrical
Helix Angle 30°
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
