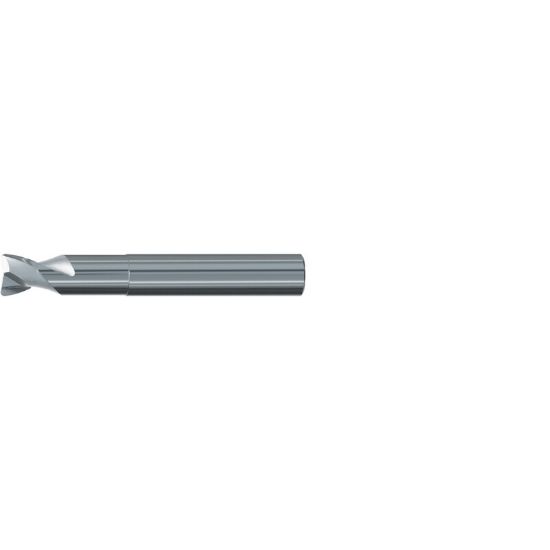

EMUGE 1942.001506 DIA 1.50MM SH 0.2362 LOC 0.0984 OAL 2.244 End Mill Torus Standard Helix Carbide Uncoated Single End Corner Radius 0.0098 0.25MM Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU1942.001506
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Application Face Milling, Profile Milling, Slot Milling, Side Milling, Copy Milling
Shipping State Massachusetts
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Flutes/Inserts 2
Cutter Dia 0.0590 1.50MM
Inch/Metric Metric
Single/Double End Single End
End Of Tool Shape Corner Radius
Length Type Stub
Length Of Cut 0.0984 2.50MM
Dimension Description 0.059 x 0.236 x 0.098 x 2.244
Corner Radius 0.0098 0.25MM
Helix Angle 30°
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Machine Side Connection Size 0.2362 6.00MM
Overall Len 2.2441 57.00MM
Cutter Style Carbide Torus
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Mold Yes
Job Shop Yes
