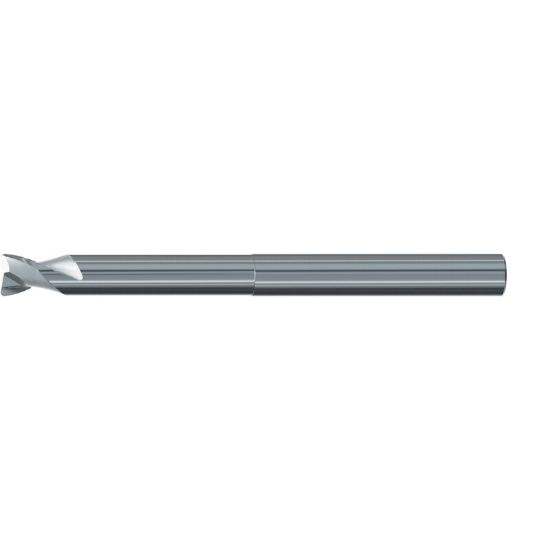

EMUGE 1941.006 DIA 6MM SH 0.2362 LOC 0.2362 OAL 3.9370 End Mill Torus Standard Helix Carbide Uncoated Single End Corner Radius 0.0315 0.80MM Alu-Cut

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: EMU1941.006
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Slot Milling, Face Milling, Profile Milling, Side Milling
Performance Rating High Performance
Shipping State Massachusetts
Package Size 1
Made In USA No
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Length Of Cut 0.2362 6.00MM
Dimension Description 0.236 x 0.236 x 0.236 x 3.937
Cutter Dia 0.2362 6.00MM
End Of Tool Shape Corner Radius
Length Type Extra Long
Single/Double End Single End
Corner Radius 0.0315 0.80MM
Machine Side Connection Size 0.2362 6.00MM
Overall Len 3.9370 100.00MM
Cutter Style Carbide Torus
Flutes/Inserts 2
Inch/Metric Metric
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
