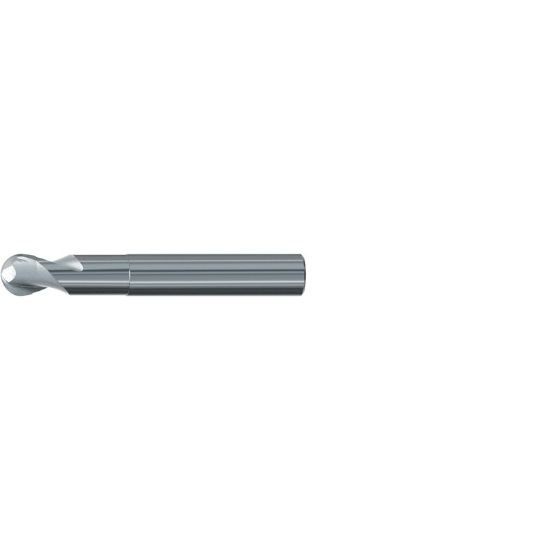

Picture of Emuge 1921.0375 Dia 3/8 SH 0.3750 LOC 0.3125 OAL2.7500 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall Alu-Cut

Emuge 1921.0375 Dia 3/8 SH 0.3750 LOC 0.3125 OAL2.7500 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Ball NoseBall Alu-Cut

Part Number: EMU1921.0375 0.375 x 0.375 x 0.313 x 2.750

Need Assistance or Service? Please call 262-251-4020

Manufacturer: EMUGE
SKU: 1234786
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
EMUGE Standard Helix End Mill Carbide Uncoated Ball Nose Ball Standard Flute Flutes 2 Single End Alu-Cut Carbide
Products specifications
Attribute name Attribute value
Shipping State MASSACHUSETTS
Made In USA NO
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.3750 9.53MM
Overall Length 2.7500 69.85MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 2
Tool Dia 0.3750 9.53MM - 3/8
Length Type Stub
Performance Rating High Performance
Length Of Cut 0.3125 7.94MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
