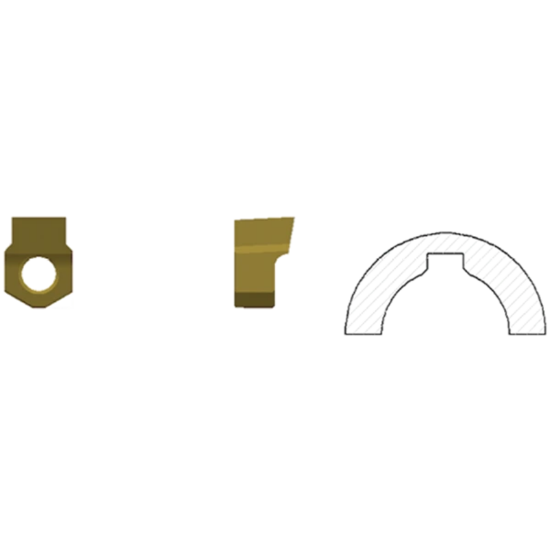

DUMONT 99219 Indexable Tools Broaching Insert 0.541 Depth Of Cut Max Carbide

ANSI: 99219

ISO: 99219

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DUMONT
SKU: DUM99219
Delivery date: 3-5 days
$221.55

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Insert Application General Purpose
Application BroachIng
Insert Type Positive
Shipping State Massachusetts
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 26.00MM
Depth Of Cut Max 0.5410
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, High Temp, Stainless Steel
Cutting & Machining Properties
Cutting Edge Mat Carbide
Insert Style KEY
Insert Shape/Cutter Pocket Shape Other
