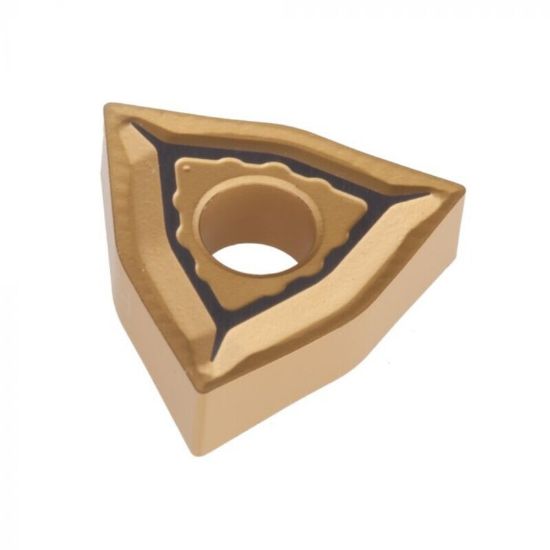

DORIAN WNMG331 UEM DPC35RT Turning Insert Trigon 0.015 Corner Radius Carbide Al2O3 + TiCN + Al2O3 + TiCN

Features And Benefits

First Choice: For Medium Application of Carbon & Alloy Steel, Stainless Steel, with Medium Depth of Cut and Medium Feed per Revolution at Low SFM (Vc), For interrupted Cut, Wet Working Condition

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Grade and Coating Description

For roughing turning applications at a low SFM. Use inserts to cut Alloy Steel and Stainless Steel. Inserts have a rough and impact resistant substrate with a CVD Al2O3/TiCl2O3/TiCN coating.
