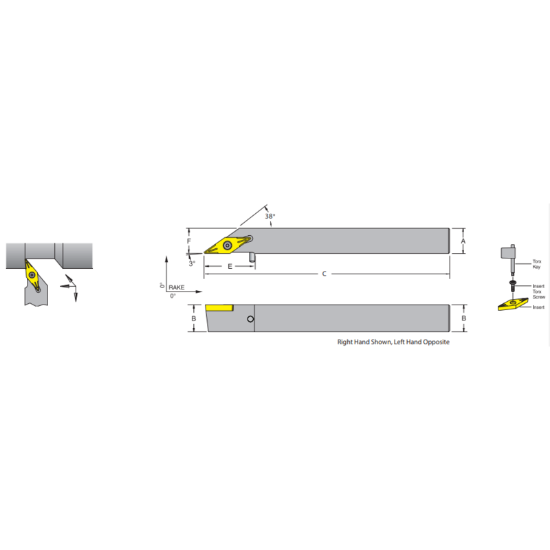

Picture of DORIAN SVNBR10-3D 35.0° Swiss Square 0.629 Shank 6.000 OAL

DORIAN SVNBR10-3D 35.0° Swiss Square 0.629 Shank 6.000 OAL

ANSI: SVNBR10-3D

ISO: SVNBR10-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR51994
Delivery date: 3-5 days
$92.52

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Non Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Ext.Turning, Swiss
Package Size 1
Shipping State Texas
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Clearance Angle 50.0°
Tool Material Steel
Tool Over Hang 1.2500
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 16 "33"
Overall Len 6.0000 152.40MM
Tool Width 0.6300
Lead Angle 93°
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Coolant Thru No
Inter/Extern External
Hand R/L Right
Insert Style VB
