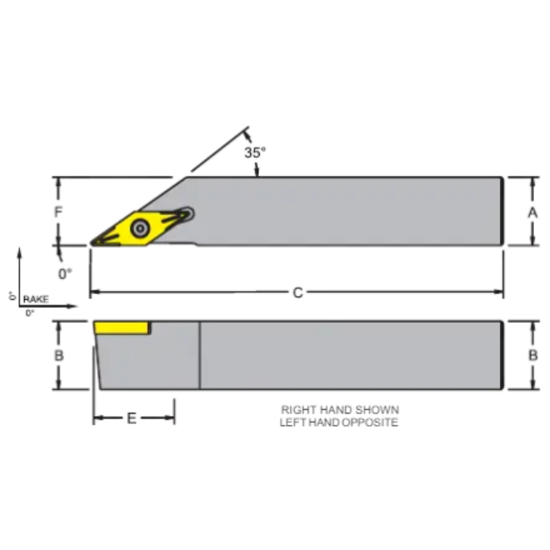

Picture of DORIAN SVABR10-3D 35.0° Swiss Square 0.629 Shank 6.000 OAL

DORIAN SVABR10-3D 35.0° Swiss Square 0.629 Shank 6.000 OAL

ANSI: SVABR10-3D

ISO: SVABR10-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR51982
Delivery date: 3-5 days
$92.52

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Non Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Shipping State Texas
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Stick Tool
Clearance Angle 50.0°
Tool Over Hang 1.0000
Lead Angle 90°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Insert Size Ic 16 "33"
Overall Len 6.0000 152.40MM
Tool Width 0.6300
Tool Material Steel
Cutting & Machining Properties
Insert Style VB
Insert Shape/Cutter Pocket Shape 35.0°
Coolant Thru No
Inter/Extern External
Hand R/L Right
