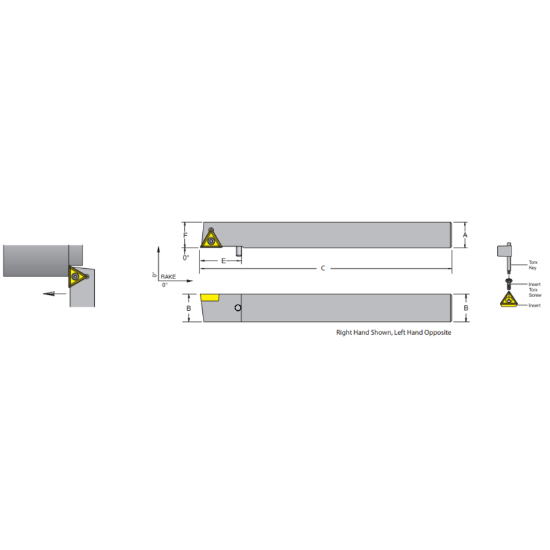

Picture of DORIAN STACL-08-2D Triangle Swiss Square 0.500 Shank 6.000 OAL

DORIAN STACL-08-2D Triangle Swiss Square 0.500 Shank 6.000 OAL

ANSI: STACL-08-2D

ISO: STACL-08-2D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR51551
Delivery date: 3-5 days
$86.34

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Non Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Overall Len 6.0000 152.40MM
Machine Side Connection Size 0.5000 12.70MM
Tool Width 0.5000
Tool Over Hang 1.0000
Insert Size Ic 11 "21"
Lead Angle 91°
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Coolant Thru No
Insert Style TC
Hand R/L Left
