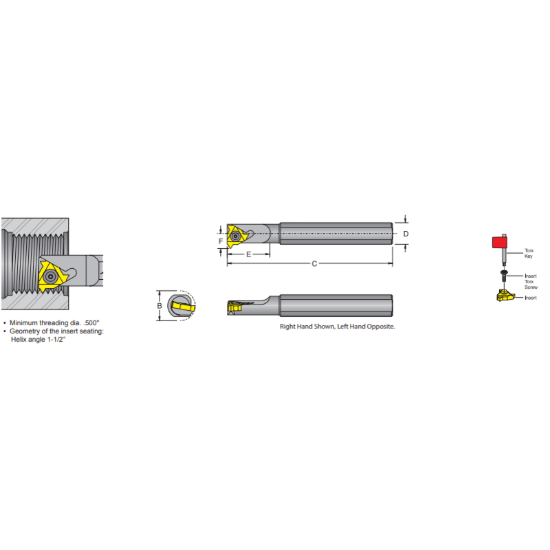

Picture of DORIAN SNR150-12-22 Iso Thread Boring Bar 1.500 Shank 12.00 OAL

DORIAN SNR150-12-22 Iso Thread Boring Bar 1.500 Shank 12.00 OAL

ANSI: SNR150-12-22

ISO: SNR150-12-22

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58668
Delivery date: 3-5 days
$186.32
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Int.Groove Threading, Int.Threading
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Insert Type Positive
Package Size 1
Dimensional Specifications
Insert Size Ic 22
Overall Len 12.0000 304.80MM
Tool Material Steel
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.5000 38.10MM
Min Bore 1.8000
Cutting & Machining Properties
Insert Style ISO
Hand R/L Right
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru No
Fasteners & Connectors
Insert Screw TS-22
Seat Screw NXE-22
