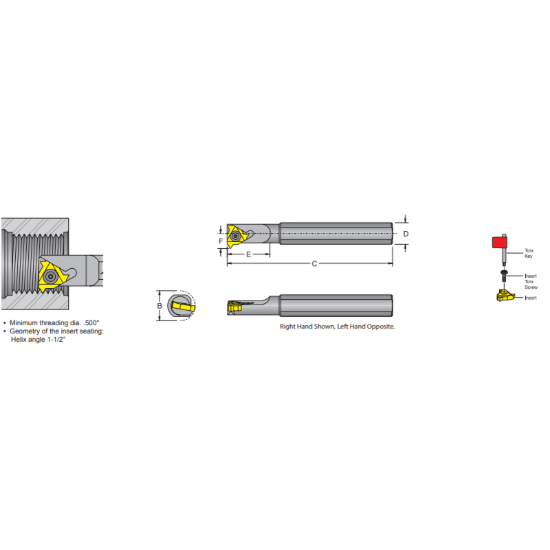

Picture of DORIAN SNR100-08-16 Iso Thread Boring Bar 1.000 Shank 8.000 OAL

DORIAN SNR100-08-16 Iso Thread Boring Bar 1.000 Shank 8.000 OAL

ANSI: SNR100-08-16

ISO: SNR100-08-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58640
Delivery date: 3-5 days
$126.81
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Texas
Application Int.Threading, Int.Groove Threading
Insert/Tool Insert
Dimensional Specifications
Overall Len 8.0000 203.20MM
Min Bore 1.1500
Machine Side Connection Type Boring Bar
Insert Size Ic 16
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru No
Insert Style ISO
Hand R/L Right
Inter/Extern Internal
Fasteners & Connectors
Seat Screw GXE-16
Insert Screw TS-16
