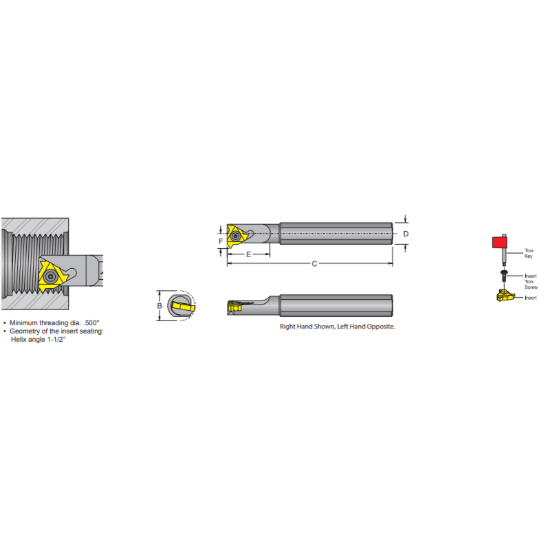

Picture of DORIAN SNL075-07-16 Iso Thread Boring Bar 0.750 Shank 7.000 OAL

DORIAN SNL075-07-16 Iso Thread Boring Bar 0.750 Shank 7.000 OAL

ANSI: SNL075-07-16

ISO: SNL075-07-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58637
Delivery date: 3-5 days
$100.93
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Texas
Application Int.Threading, Int.Groove Threading
Insert Type Positive
Package Size 1
Insert/Tool Insert
Dimensional Specifications
Machine Side Connection Type Boring Bar
Insert Size Ic 16
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 7.0000 177.80MM
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Min Bore 0.9500
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru No
Inter/Extern Internal
Insert Style ISO
Fasteners & Connectors
Seat Screw GXE-16
Insert Screw TS-16
