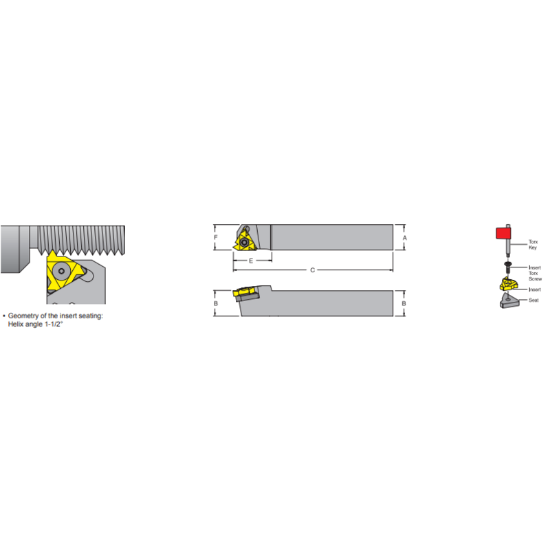

Picture of DORIAN SER100-5-16 Iso Thread Square 1.000 Shank 5.000 OAL

DORIAN SER100-5-16 Iso Thread Square 1.000 Shank 5.000 OAL

ANSI: SER100-5-16

ISO: SER100-5-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58436
Delivery date: 3-5 days
$80.00

Details

SE R/L Threading Toolholder- Style E- for LAYDOWN inserts

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Insert Type Positive
Insert Application General Purpose
Made In USA No
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 16
Tool Width 1.0000
Tool Over Hang 1.0000
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 5.0000 127.00MM
Cutting & Machining Properties
Insert Style ISO
Hand R/L Right
Inter/Extern External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Seat/Nest GXE-16
Fasteners & Connectors
Insert Screw TS-16
