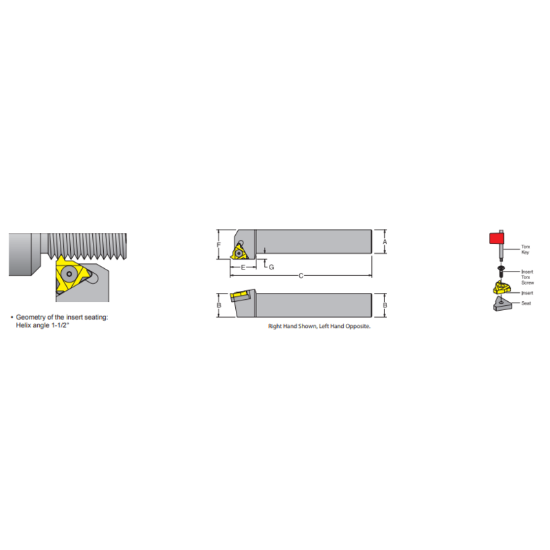

Picture of DORIAN SER075-5-16Q Iso Thread Square 0.750 Shank 5.000 OAL

DORIAN SER075-5-16Q Iso Thread Square 0.750 Shank 5.000 OAL

ANSI: SER075-5-16Q

ISO: SER075-5-16Q

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58492
Delivery date: 3-5 days
$76.46

Details

SE R/L Qualified Threading Toolholder- Style E- Offset Head for LAYDOWN inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Made In USA No
Shipping State Texas
Insert Application General Purpose
Insert/Tool Insert
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Over Hang 1.0000
Insert Size Ic 16
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Overall Len 5.0000 127.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Coolant Thru No
Hand R/L Right
Seat/Nest GXE-16
Insert Style ISO
Fasteners & Connectors
Insert Screw TS-16
