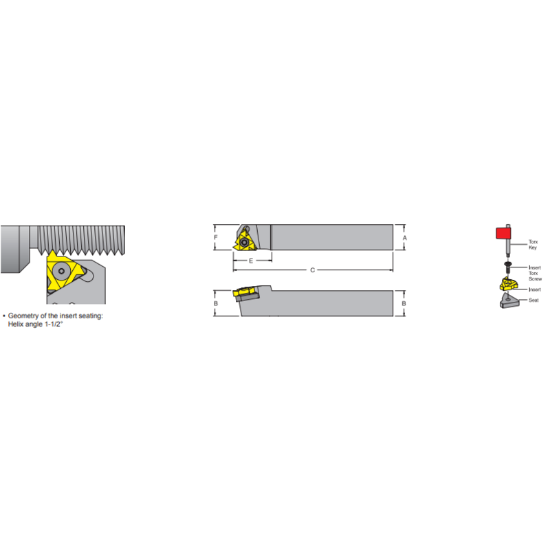

Picture of DORIAN SER075-5-16 Iso Thread Square 0.750 Shank 5.000 OAL

DORIAN SER075-5-16 Iso Thread Square 0.750 Shank 5.000 OAL

ANSI: SER075-5-16

ISO: SER075-5-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58432
Delivery date: 3-5 days
$70.59

Details

SE R/L Threading Toolholder- Style E- for LAYDOWN inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Shipping State Texas
Insert Application General Purpose
Made In USA No
Application Ext.Threading, Ext.Groove Threading
Package Size 1
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 16
Overall Len 5.0000 127.00MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Over Hang 0.7500
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Seat/Nest GXE-16
Insert Style ISO
Hand R/L Right
Inter/Extern External
Coolant Thru No
Fasteners & Connectors
Insert Screw TS-16
