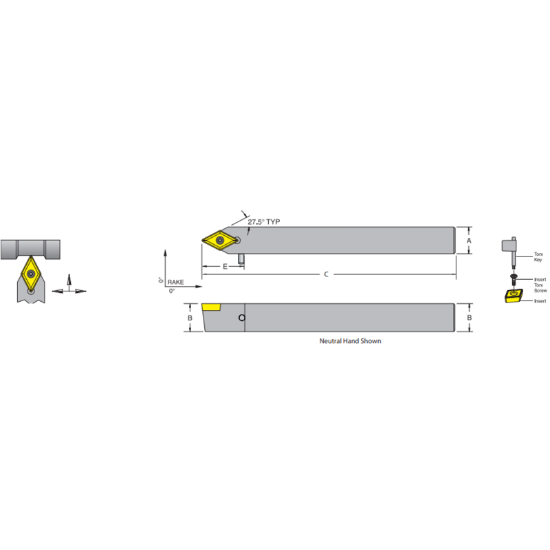

Picture of DORIAN SDPCN08-3D 55.0° Swiss Square 0.500 Shank 6.000 OAL

DORIAN SDPCN08-3D 55.0° Swiss Square 0.500 Shank 6.000 OAL

ANSI: SDPCN08-3D

ISO: SDPCN08-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR51944
Delivery date: 3-5 days
$86.34

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Non Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Package Size 1
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Clearance Angle 60.0°
Overall Len 6.0000 152.40MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Lead Angle 62.5°
Tool Over Hang 1.0000
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 11 "32"
Machine Side Connection Size 0.5000 12.70MM
Tool Width 0.5000
Cutting & Machining Properties
Hand R/L Neutral
Inter/Extern External
Coolant Thru No
Insert Style DC
Insert Shape/Cutter Pocket Shape 55.0°
