Picture of DORIAN NSR16-4D Stick Tool Top Notch Type Square 1.000 Shank 6.000 OAL

DORIAN NSR16-4D Stick Tool Top Notch Type Square 1.000 Shank 6.000 OAL

ANSI: NSR16-4D

ISO: NSR16-4D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58814
Delivery date: 3-5 days
$80.30

Details

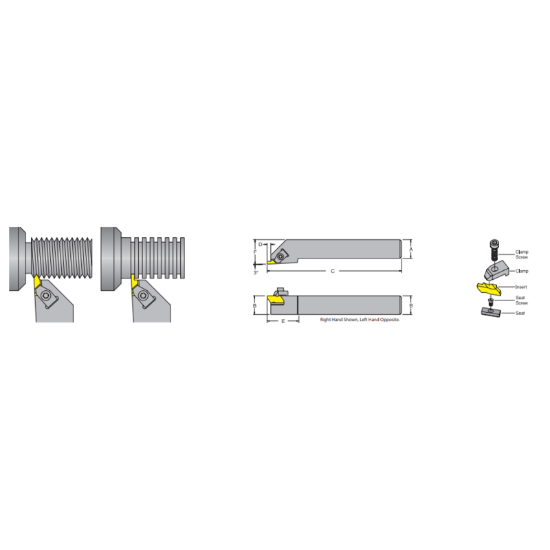

NS R/L Threading & Grooving Toolholder- Style - External DorNotch Toolholder for threading and grooving DorNotch inserts

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Type Positive
Insert/Tool Tool
Application Ext.Grooving, Ext.Threading
Insert Application General Purpose
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Tool Over Hang 1.3800
Tool Width 1.0000
Overall Len 6.0000 152.40MM
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Style TOP NOTCH
Hand R/L Right
Insert Shape/Cutter Pocket Shape Top Notch
Inter/Extern External
Coolant Thru No
Fasteners & Connectors
Clamp/Wedge CM-73
Clamp Screw S-412
