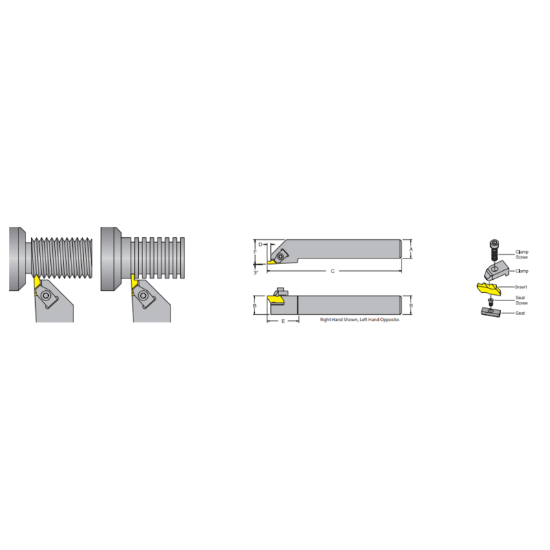

Picture of DORIAN NSR16-2C Stick Tool Top Notch Type Square 1.000 Shank 5.000 OAL

DORIAN NSR16-2C Stick Tool Top Notch Type Square 1.000 Shank 5.000 OAL

ANSI: NSR16-2C

ISO: NSR16-2C

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58786
Delivery date: 3-5 days
$76.81

Details

NS R/L Threading & Grooving Toolholder- Style - External DorNotch Toolholder for threading and grooving DorNotch inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Application Ext.Threading, Ext.Grooving
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 2
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 5.0000 127.00MM
Tool Width 1.0000
Tool Over Hang 0.7500
Cutting & Machining Properties
Insert Style TOP NOTCH
Hand R/L Right
Inter/Extern External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Top Notch
Fasteners & Connectors
Clamp/Wedge CM-75
Clamp Screw S-310
