Picture of DORIAN NRL24-3D Stick Tool Top Notch Type Square 1.500 Shank 6.000 OAL

DORIAN NRL24-3D Stick Tool Top Notch Type Square 1.500 Shank 6.000 OAL

ANSI: NRL24-3D

ISO: NRL24-3D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58951
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

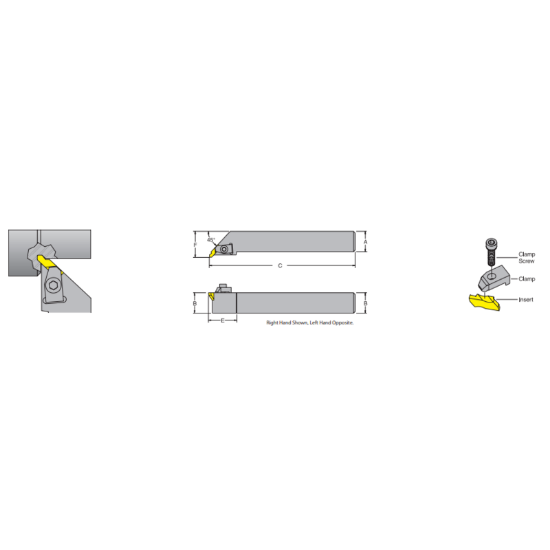

NR R/L Grooving Gang Toolholder- Style - Corner Grooving External DorNotch Toolholder for grooving DorNotch inserts

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Application Ext.Grooving, Ext.Threading
Insert Type Positive
Package Size 1
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Size 1.5000 38.10MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 1.5000
Insert Size Ic 3
Tool Over Hang 2.0000
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape Top Notch
Inter/Extern External
Coolant Thru No
Insert Style TOP NOTCH
Fasteners & Connectors
Clamp Screw S-412
Clamp/Wedge CM-73
