Picture of DORIAN MTVOR20-4D-CN On Edge Square 1.250 Shank 6.000 OAL

DORIAN MTVOR20-4D-CN On Edge Square 1.250 Shank 6.000 OAL

ANSI: MTVOR20-4D-CN

ISO: MTVOR20-4D-CN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58040
Delivery date: 3-5 days
$92.23

Details

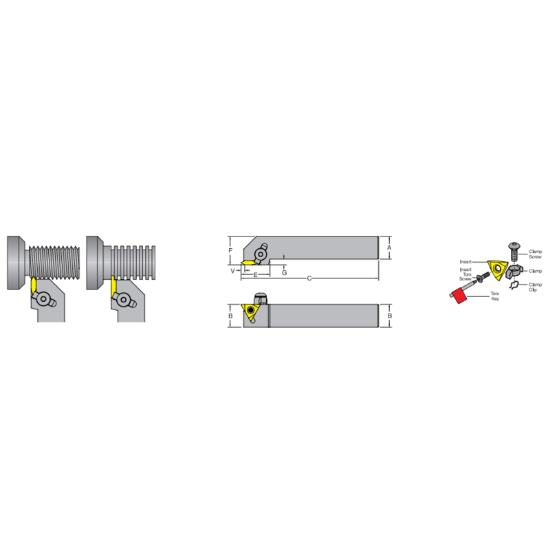

MTVO-CN R/L Threading Toolholder- Style V - O.D. Threading and Shallow Grooving for triangle TNMC inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Shipping State Texas
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Application Ext.Threading
Package Size 1
Dimensional Specifications
Tool Over Hang 1.5000
Overall Len 6.0000 152.40MM
Tool Width 1.2500
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Hand R/L Right
Inter/Extern External
Coolant Thru No
Fasteners & Connectors
Insert Screw GTS-2
Clamp/Wedge HC-12
Clamp Screw CS-126
