Picture of DORIAN MTVOR20-4D-A On Edge Square 1.250 Shank 6.000 OAL

DORIAN MTVOR20-4D-A On Edge Square 1.250 Shank 6.000 OAL

ANSI: MTVOR20-4D-A

ISO: MTVOR20-4D-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58150
Delivery date: 3-5 days
$93.16

Details

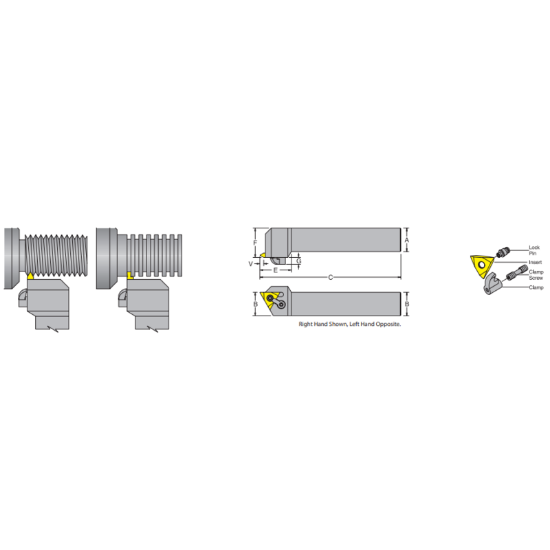

MTVO-A R/L Threading Toolholder- Style V - O.D. Threading and Shallow Grooving for triangle TNMA inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Ext.Threading
Package Size 1
Shipping State Texas
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 1.5000
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Width 1.2500
Overall Len 6.0000 152.40MM
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Inter/Extern External
Coolant Thru No
Hand R/L Right
Fasteners & Connectors
Lock Pin NL-44
Clamp Screw XNS-36
Clamp/Wedge CL-6
