Picture of DORIAN MTVOR16-4D-CN On Edge Square 1.000 Shank 6.000 OAL

DORIAN MTVOR16-4D-CN On Edge Square 1.000 Shank 6.000 OAL

ANSI: MTVOR16-4D-CN

ISO: MTVOR16-4D-CN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58036
Delivery date: 3-5 days
$83.03

Details

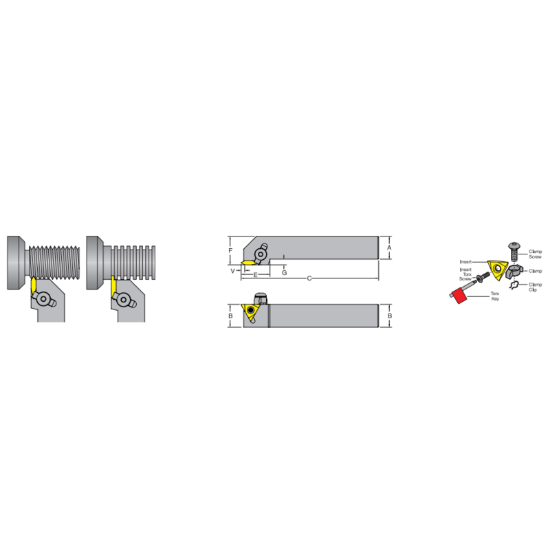

MTVO-CN R/L Threading Toolholder- Style V - O.D. Threading and Shallow Grooving for triangle TNMC inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Insert Type Positive
Application Ext.Threading
Package Size 1
Shipping State Texas
Dimensional Specifications
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Insert Size Ic 4
Machine Side Connection Type Stick Tool
Tool Material Steel
Tool Over Hang 1.2500
Machine Side Connection Size 1.0000 25.40MM
Tool Width 1.0000
Cutting & Machining Properties
Hand R/L Right
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Inter/Extern External
Fasteners & Connectors
Clamp Screw CS-126
Clamp/Wedge HC-12
Insert Screw GTS-2
