Picture of DORIAN MTVOR16-3D-CN On Edge Square 1.000 Shank 6.000 OAL

DORIAN MTVOR16-3D-CN On Edge Square 1.000 Shank 6.000 OAL

ANSI: MTVOR16-3D-CN

ISO: MTVOR16-3D-CN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58028
Delivery date: 3-5 days
$79.42

Details

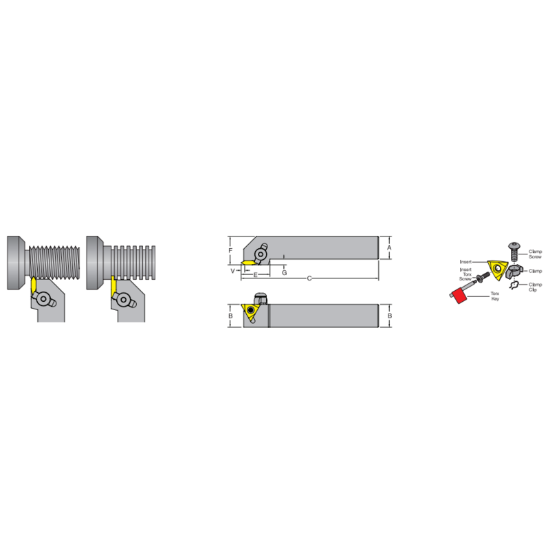

MTVO-CN R/L Threading Toolholder- Style V - O.D. Threading and Shallow Grooving for triangle TNMC inserts

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Type Positive
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Application Ext.Threading
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Width 1.0000
Insert Size Ic 32
Tool Material Steel
Tool Over Hang 1.2500
Machine Side Connection Type Stick Tool
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Inter/Extern External
Coolant Thru No
Hand R/L Right
Fasteners & Connectors
Clamp/Wedge HC-9
Insert Screw GTS-1M
Clamp Screw CS-96
