Picture of DORIAN MTVOR12-3B-CN On Edge Square 0.750 Shank 4.500 OAL

DORIAN MTVOR12-3B-CN On Edge Square 0.750 Shank 4.500 OAL

ANSI: MTVOR12-3B-CN

ISO: MTVOR12-3B-CN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58024
Delivery date: 3-5 days
$73.01

Details

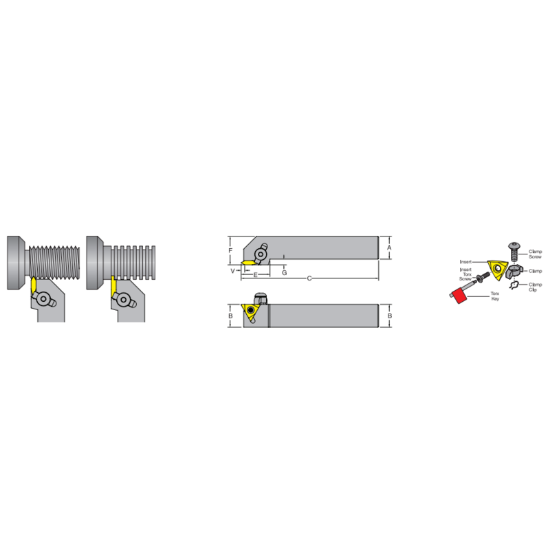

MTVO-CN R/L Threading Toolholder- Style V - O.D. Threading and Shallow Grooving for triangle TNMC inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Application Ext.Threading
Package Size 1
Insert Type Positive
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 32
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Overall Len 4.5000 114.30MM
Tool Over Hang 0.8750
Tool Width 0.7500
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Inter/Extern External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Hand R/L Right
Fasteners & Connectors
Insert Screw GTS-1M
Clamp/Wedge HC-9
Clamp Screw CS-96
