Picture of DORIAN MTVOR12-3B-A On Edge Square 0.750 Shank 4.500 OAL

DORIAN MTVOR12-3B-A On Edge Square 0.750 Shank 4.500 OAL

ANSI: MTVOR12-3B-A

ISO: MTVOR12-3B-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58134
Delivery date: 3-5 days
$73.01

Details

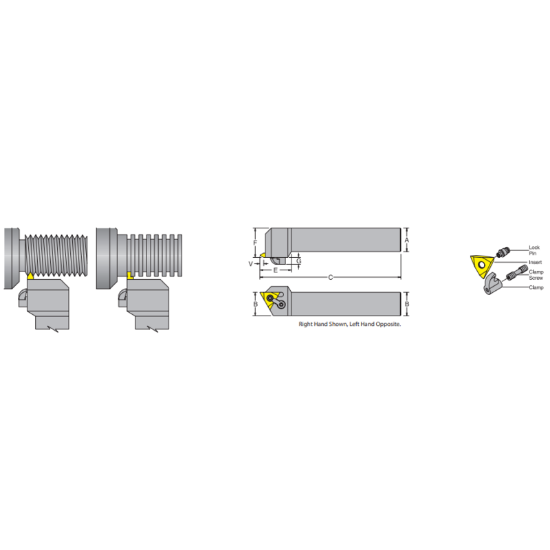

MTVO-A R/L Threading Toolholder- Style V - O.D. Threading and Shallow Grooving for triangle TNMA inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Texas
Application Ext.Threading
Package Size 1
Insert Application General Purpose
Made In USA No
Insert Type Positive
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 0.8750
Insert Size Ic 32
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Overall Len 4.5000 114.30MM
Tool Width 0.7500
Cutting & Machining Properties
Hand R/L Right
Inter/Extern External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Fasteners & Connectors
Lock Pin NL-33
Clamp/Wedge CL-6
Clamp Screw XNS-36
