Picture of DORIAN MTVOR10-3B-CN On Edge Square 0.625 Shank 4.500 OAL

DORIAN MTVOR10-3B-CN On Edge Square 0.625 Shank 4.500 OAL

ANSI: MTVOR10-3B-CN

ISO: MTVOR10-3B-CN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58020
Delivery date: 3-5 days
$71.74

Details

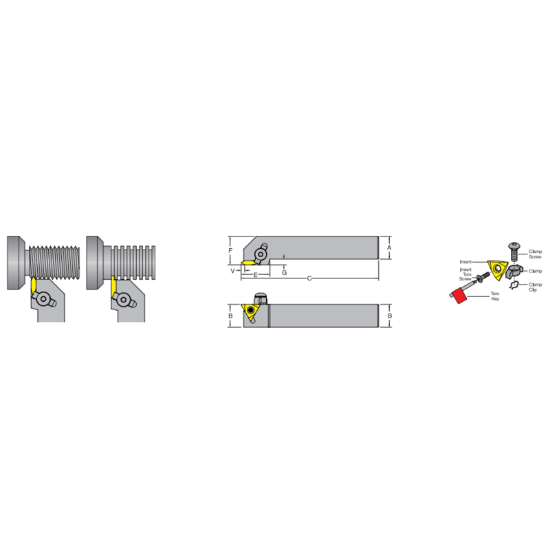

MTVO-CN R/L Threading Toolholder- Style V - O.D. Threading and Shallow Grooving for triangle TNMC inserts

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Threading
Package Size 1
Insert Type Positive
Shipping State Texas
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Insert Size Ic 32
Machine Side Connection Size 0.6250 15.88MM
Tool Over Hang 0.7500
Overall Len 4.5000 114.30MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Tool Width 0.6250
Cutting & Machining Properties
Hand R/L Right
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Inter/Extern External
Fasteners & Connectors
Insert Screw GTS-1M
Clamp/Wedge HC-9
Clamp Screw CS-96
