Picture of DORIAN MTVOR08-3B-A On Edge Square 0.500 Shank 4.500 OAL

DORIAN MTVOR08-3B-A On Edge Square 0.500 Shank 4.500 OAL

ANSI: MTVOR08-3B-A

ISO: MTVOR08-3B-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58126
Delivery date: 3-5 days
$69.17

Details

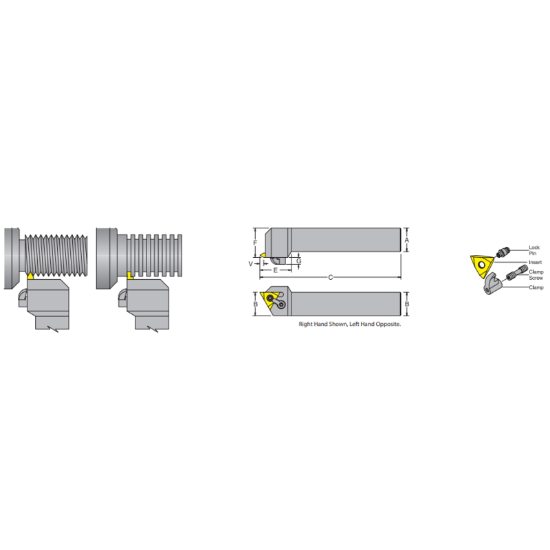

MTVO-A R/L Threading Toolholder- Style V - O.D. Threading and Shallow Grooving for triangle TNMA inserts

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Application Ext.Threading
Package Size 1
Insert Type Positive
Dimensional Specifications
Tool Over Hang 0.6250
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 32
Machine Side Connection Size 0.5000 12.70MM
Tool Width 0.5000
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Hand R/L Right
Inter/Extern External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Fasteners & Connectors
Lock Pin NL-33
Clamp Screw XNS-36
Clamp/Wedge CL-6
