Picture of DORIAN MTVOR08-3A-CN On Edge Square 0.500 Shank 4.000 OAL

DORIAN MTVOR08-3A-CN On Edge Square 0.500 Shank 4.000 OAL

ANSI: MTVOR08-3A-CN

ISO: MTVOR08-3A-CN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58012
Delivery date: 3-5 days
$69.17

Details

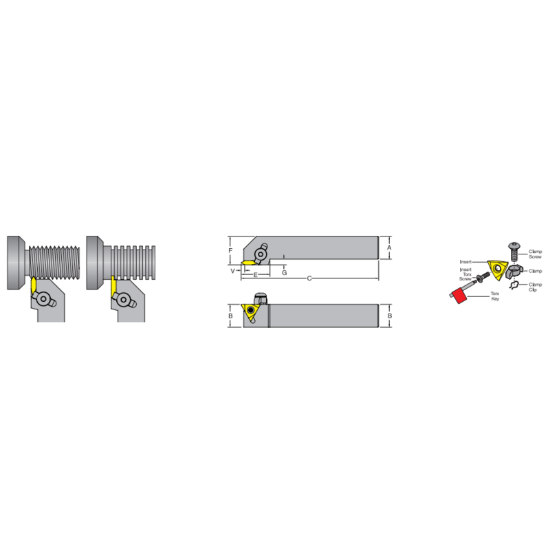

MTVO-CN R/L Threading Toolholder- Style V - O.D. Threading and Shallow Grooving for triangle TNMC inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Application Ext.Threading
Package Size 1
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Tool Width 0.5000
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Over Hang 0.6250
Overall Len 4.0000 101.60MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Insert Size Ic 32
Machine Side Connection Size 0.5000 12.70MM
Cutting & Machining Properties
Coolant Thru No
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Inter/Extern External
Fasteners & Connectors
Clamp/Wedge HC-9
Clamp Screw CS-96
Insert Screw GTS-1M
