Picture of DORIAN MTVOL20-66D-A On Edge Square 1.250 Shank 6.000 OAL

DORIAN MTVOL20-66D-A On Edge Square 1.250 Shank 6.000 OAL

ANSI: MTVOL20-66D-A

ISO: MTVOL20-66D-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58171
Delivery date: 3-5 days
$100.61

Details

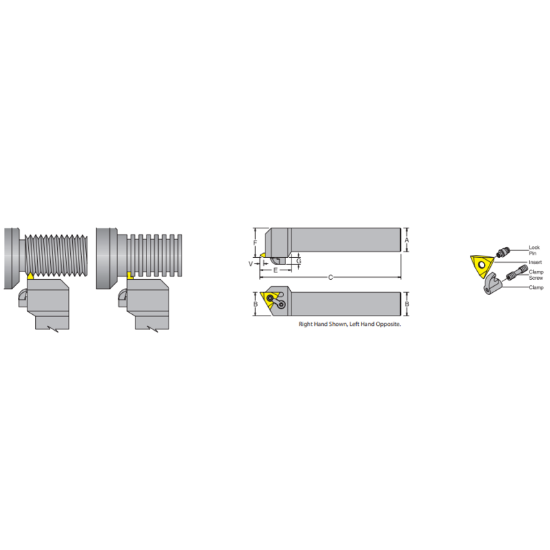

MTVO-A R/L Threading Toolholder- Style V - O.D. Threading and Shallow Grooving for triangle TNMA inserts

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Insert Type Positive
Application Ext.Threading
Package Size 1
Dimensional Specifications
Tool Width 1.2500
Overall Len 6.0000 152.40MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 6
Tool Over Hang 1.5000
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Inter/Extern External
Coolant Thru No
Fasteners & Connectors
Clamp Screw XNS-59
Clamp/Wedge CL-12
Lock Pin NL-66L
