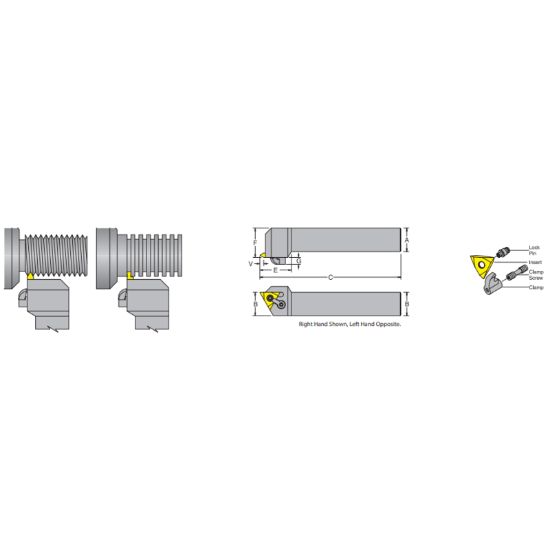

Picture of DORIAN MTVOL20-4D-A On Edge Square 1.250 Shank 6.000 OAL

DORIAN MTVOL20-4D-A On Edge Square 1.250 Shank 6.000 OAL

ANSI: MTVOL20-4D-A

ISO: MTVOL20-4D-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58151
Delivery date: 3-5 days
$93.16

Details

MTVO-A R/L Threading Toolholder- Style V - O.D. Threading and Shallow Grooving for triangle TNMA inserts

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Threading
Package Size 1
Insert/Tool Tool
Insert Type Positive
Shipping State Texas
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Overall Len 6.0000 152.40MM
Tool Over Hang 1.5000
Tool Width 1.2500
Cutting & Machining Properties
Inter/Extern External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Hand R/L Left
Fasteners & Connectors
Clamp Screw XNS-36
Lock Pin NL-44
Clamp/Wedge CL-6
