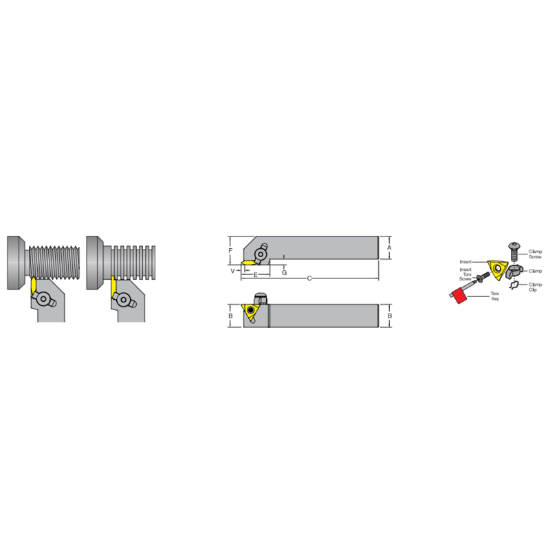

Picture of DORIAN MTVOL16-5D-CN On Edge Square 1.000 Shank 6.000 OAL

DORIAN MTVOL16-5D-CN On Edge Square 1.000 Shank 6.000 OAL

ANSI: MTVOL16-5D-CN

ISO: MTVOL16-5D-CN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58049
Delivery date: 3-5 days
$86.64

Details

MTVO-CN R/L Threading Toolholder- Style V - O.D. Threading and Shallow Grooving for triangle TNMC inserts

Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Shipping State Texas
Insert Type Positive
Application Ext.Threading
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 5
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 6.0000 152.40MM
Tool Width 1.0000
Tool Over Hang 1.2500
Cutting & Machining Properties
Hand R/L Left
Insert Style ON EDGE
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Coolant Thru No
Fasteners & Connectors
Clamp/Wedge HC-12
Insert Screw GTS-3
Clamp Screw CS-126
