Picture of DORIAN MTVOL16-4D-A On Edge Square 1.000 Shank 6.000 OAL

DORIAN MTVOL16-4D-A On Edge Square 1.000 Shank 6.000 OAL

ANSI: MTVOL16-4D-A

ISO: MTVOL16-4D-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58147
Delivery date: 3-5 days
$83.03

Details

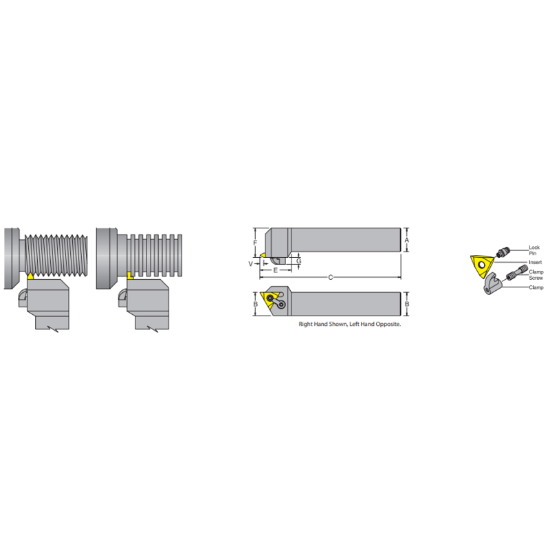

MTVO-A R/L Threading Toolholder- Style V - O.D. Threading and Shallow Grooving for triangle TNMA inserts

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Application Ext.Threading
Package Size 1
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Tool Width 1.0000
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Tool Over Hang 1.2500
Insert Size Ic 4
Machine Side Connection Type Stick Tool
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Inter/Extern External
Coolant Thru No
Fasteners & Connectors
Clamp/Wedge CL-6
Lock Pin NL-44
Clamp Screw XNS-36
