Picture of DORIAN MTVOL16-3D-CN On Edge Square 1.000 Shank 6.000 OAL

DORIAN MTVOL16-3D-CN On Edge Square 1.000 Shank 6.000 OAL

ANSI: MTVOL16-3D-CN

ISO: MTVOL16-3D-CN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58029
Delivery date: 3-5 days
$79.42

Details

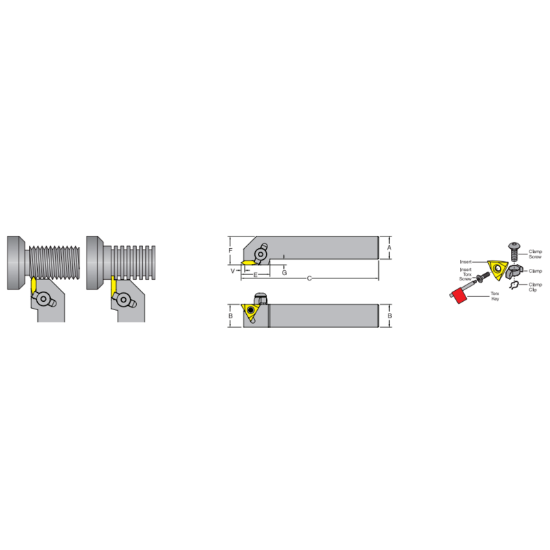

MTVO-CN R/L Threading Toolholder- Style V - O.D. Threading and Shallow Grooving for triangle TNMC inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Threading
Package Size 1
Insert Type Positive
Shipping State Texas
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 1.2500
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 32
Tool Width 1.0000
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Hand R/L Left
Inter/Extern External
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Fasteners & Connectors
Insert Screw GTS-1M
Clamp/Wedge HC-9
Clamp Screw CS-96
