Picture of DORIAN MTVOL12-4B-A On Edge Square 0.750 Shank 4.500 OAL

DORIAN MTVOL12-4B-A On Edge Square 0.750 Shank 4.500 OAL

ANSI: MTVOL12-4B-A

ISO: MTVOL12-4B-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58143
Delivery date: 3-5 days
$76.33

Details

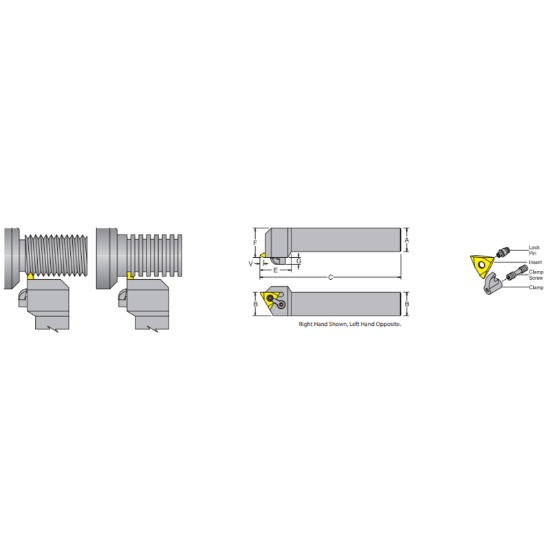

MTVO-A R/L Threading Toolholder- Style V - O.D. Threading and Shallow Grooving for triangle TNMA inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert Type Positive
Application Ext.Threading
Package Size 1
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Overall Len 4.5000 114.30MM
Tool Over Hang 0.8750
Tool Width 0.7500
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Insert Size Ic 4
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Inter/Extern External
Coolant Thru No
Hand R/L Left
Fasteners & Connectors
Clamp/Wedge CL-6
Lock Pin NL-44
Clamp Screw XNS-36
