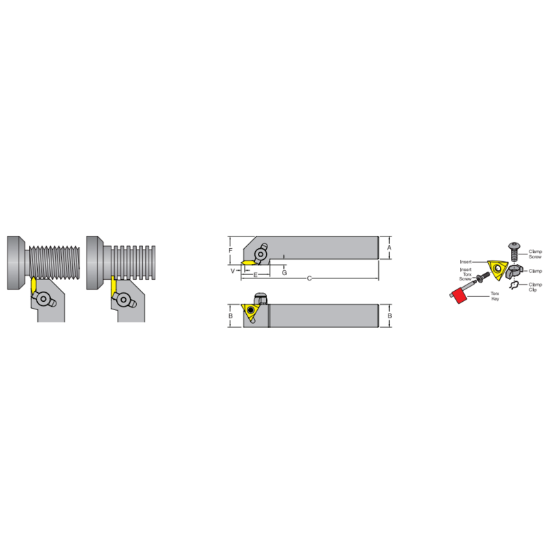

Picture of DORIAN MTVOL12-3B-CN On Edge Square 0.750 Shank 4.500 OAL

DORIAN MTVOL12-3B-CN On Edge Square 0.750 Shank 4.500 OAL

ANSI: MTVOL12-3B-CN

ISO: MTVOL12-3B-CN

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58025
Delivery date: 3-5 days
$73.01

Details

MTVO-CN R/L Threading Toolholder- Style V - O.D. Threading and Shallow Grooving for triangle TNMC inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Shipping State Texas
Made In USA No
Application Ext.Threading
Package Size 1
Insert Application General Purpose
Insert/Tool Tool
Dimensional Specifications
Overall Len 4.5000 114.30MM
Tool Over Hang 0.8750
Insert Size Ic 32
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.7500 19.05MM
Tool Width 0.7500
Cutting & Machining Properties
Hand R/L Left
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Inter/Extern External
Fasteners & Connectors
Insert Screw GTS-1M
Clamp/Wedge HC-9
Clamp Screw CS-96
