Picture of DORIAN MTVOL10-3B-A On Edge Square 0.625 Shank 4.500 OAL

DORIAN MTVOL10-3B-A On Edge Square 0.625 Shank 4.500 OAL

ANSI: MTVOL10-3B-A

ISO: MTVOL10-3B-A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58131
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Details

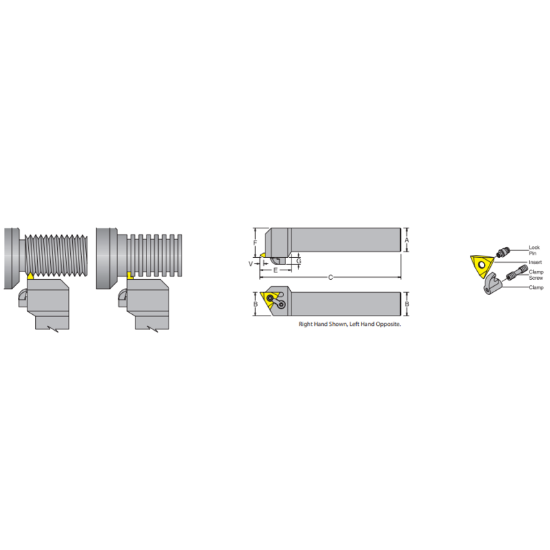

MTVO-A R/L Threading Toolholder- Style V - O.D. Threading and Shallow Grooving for triangle TNMA inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Application Ext.Threading
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Tool Width 0.6250
Insert Size Ic 32
Machine Side Connection Size 0.6250 15.88MM
Tool Over Hang 0.7500
Overall Len 4.5000 114.30MM
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Inter/Extern External
Coolant Thru No
Fasteners & Connectors
Clamp/Wedge CL-6
Lock Pin NL-33
Clamp Screw XNS-36
